CSST Bonding Diagram For proper bonding of CSST, a separate bonding wire is connected to the rigid gas piping before the CSST, or directly to one of the CSST nuts. The below figure shows the CSST bonding diagram. CSST Bonding Diagram The below figure shows an example of proper CSST Bonding. Proper CSST Bonding CSST Bonding Code frequently used diagrams • property line clean-out diagram • backwater valve diagram • loop vent diagram • csst bonding diagram • bollard installation • waterheater in basement • drywell installation . 3 part i building requirements 2019 california residential code

Ok, if there is CSST then you are most likely required to bond the gas piping. You can't use a ground rod on the far side of the house without bonding it to the other GEC system, that can cause way worse issues. Here is a diagram, remember that there are more ways to do it than this shows, such as the water pipe.

Csst bonding diagram

This section addresses gas pipe bonding specific to CSST and does so for the purpose of ... boriding jumper may be connected as per the diagram.5 pages Proper CSST Bonding. CSST Bond Wires or Clamps Shall NEVER Be Connected to: Natural gas meters or facilities. A ground that is independent of the electrical service grounding system. The corrugated stainless-steel portion of the flexible CSST pipe (Clamps must be attached to: the brass fitting, steel manifold, or other rigid steel pipe). CSST fitting located downstream of the utility gas meter or second-stage LP regulator. The bonding clamp attachment point may be at any location within the gas piping system. However, the shortest practical bonding wire length will improve the effectiveness of the direct-bond. The corrugated stainless steel tubing portion of the gas

Csst bonding diagram. Electrical - AC & DC - CSST Bonding - Hi, I have about 20' of CSST that runs from the main iron gas line to the kitchen stove. 1. Do you think it's necessary to ground? 2. If necessary to ground, can I run a ground wire from point B (see diagram) to a common ground wire inside an electrical switch box? Thanks! 2015 International Fuel Gas Code, Section 310 - Electrical Bonding 310.1.1 CSST. Corrugated stainless steel tubing (CSST) gas piping systems shall be bonded to the electrical service grounding electrode system at the point where the gas service enters the boiling. The bonding jumper shall be not smaller than 6 AWG copper wire or equivalent. I last blogged about CSST bonding nearly three years ago. There have been a few changes to CSST bonding rules since then, and there is still a lot of bad information circulating about CSST bonding ... B. Proper Bonding of the fuel gas system in accordance with the National Fuel Gas Code NFPA 54/ANSI Z223 C. Bonding of all other metallic systems and exposed structural steel (ref NEC section 250.104). Bonding should include water pipe, metallic vents and flues as well as other metallic systems D. New technologies which can be integrated into a ...

CSST with a listed arc resistant jacket or cNFGC oating: Section 7.12.3 allows CSST listed with an arc resistant jacket or coating to be bonded to the grounding electrode system by means of any electrically grounded appliance. This is the same bonding means as allowed for use with all other types CSST (corrugated stainless steel tubing) flexi-ble gas piping material must only be installed by a qualified person who has been sucessfully trained through the The TracPipe ® CounterStrike ® gas piping installation program. This guide is updated periodically. Installers must use the most current version of the guide. Copies CSST. CSST gas piping systems shall be bonded to the electrical service grounding electrode system. The bonding jumper shall connect to a metallic pipe or fitting between the point of delivery and the first downstream CSST fitting . The bonding jumper shall not be smaller than 6 AWG copper wire or equivalent. Gas piping systems Corrugated stainless steel tubing (CSST) gas piping systems shall be bonded to the electrical service grounding electrode system at the point where the gas service enters the building.The bonding jumper shall be not smaller than 6 AWG copper wire or equivalent.

extension of existing that includes CSST piping: 1. A copy of the installer's certification from the manufacturer for the installation of CSST. 2. An electrical permit is required for the bonding of the CSST Bonding of CSST can be done to any of the following locations: 1. Cold Water Meter 2. How to properly bond HOME-FLEX Corrugated Stainless Steel Tubing (CSST). To protect from electrical arcing and meet code NFPA 54 Sec 7.13.Become a Qualified ... Corrugated stainless steel tubing (CSST) gas piping systems shall be bonded to the electrical service grounding electrode system at the point where the gas service enters the building. The bonding jumper shall be not smaller than 6 AWG copper wire or equivalent." The purpose of the bonding jumper required by these CSST Bonding Diagram Do fireplace installers generally do this, or is it up to the plumber or electrician? I want to get this done now. I'm guessing most home inspectors will pick up on it if/when I sell the house down the road. That, and I really don't want to be wondering about it every time there's a thunderstorm.

Bulletin 10-14-7 Bonding of non-electrical equipment - Final ...

1 PROPERLY BONDING and grounding the Corrugated Stainless Steel Tubing (CSST) system may reduce the risk of damage and ﬁre from a lightning strike. Lightning is a highly destructive force. Even a nearby lightning strike that does not strike a structure directly can cause systems in the structure to become electrically energized.

What is the difference between grounding and bonding? | Blue ...

If CSST is installed without being properly bonded to current standards, you have an increased risk for damage to the material from a nearby lightning strike. If CSST is damaged, it can leak gas and cause an explosion and/or a fire. To the best of my knowledge, all manufacturers of CSST began implementing specific bonding requirements around 2006.

Am I missing anything on this diagram to convert my electric ...

Bonding CSST gas pipe

Minneapolis Home Inspections: May 2010

Corrugated stainless steel tubing (CSST) gas pipping systems shall be bonded to the electrical service grounding electrode system. Teh bonding jumper shall be not smaller than 6AWG copper wire or equivalent. Gas piping systems that contain one or more segments of CSST. There needs to be a separate bonding wire connected either to the rigid gas ...

CSST Bonding: What is it? (And Why is it Necessary ...

CSST Bonding Update. By Reuben Saltzman In CSST Bonding, NEW On April 28, First, a primer on CSST, which stands for Corrugated Stainless Steel Tubing. The diagram below shows an example of what this would look like when properly installed to today's standards. Additional Information on CSST and bonding.

CodeNotesâ„¢

All manufacturers of CSST require the systems to be bonded in a specific manner - there needs to be a separate ground wire connected either to the rigid gas piping before the CSST, or directly to one of the CSST nuts. The diagram below shows an example of what this would look like when properly installed to today's standards.

Applying Temporary Bonding

Diagram B3 - Bonding at the hot water tank (c) Corrugated Stainless Steel Tubing (CSST) installations ESA has received inquiries from the Gas industry about jurisdiction regarding CSST installation and inspection. The below information is intended to clarify responsibilities regarding CSST installation.

CodeNotes: Bonding of corrugated stainless steel tubing gas ...

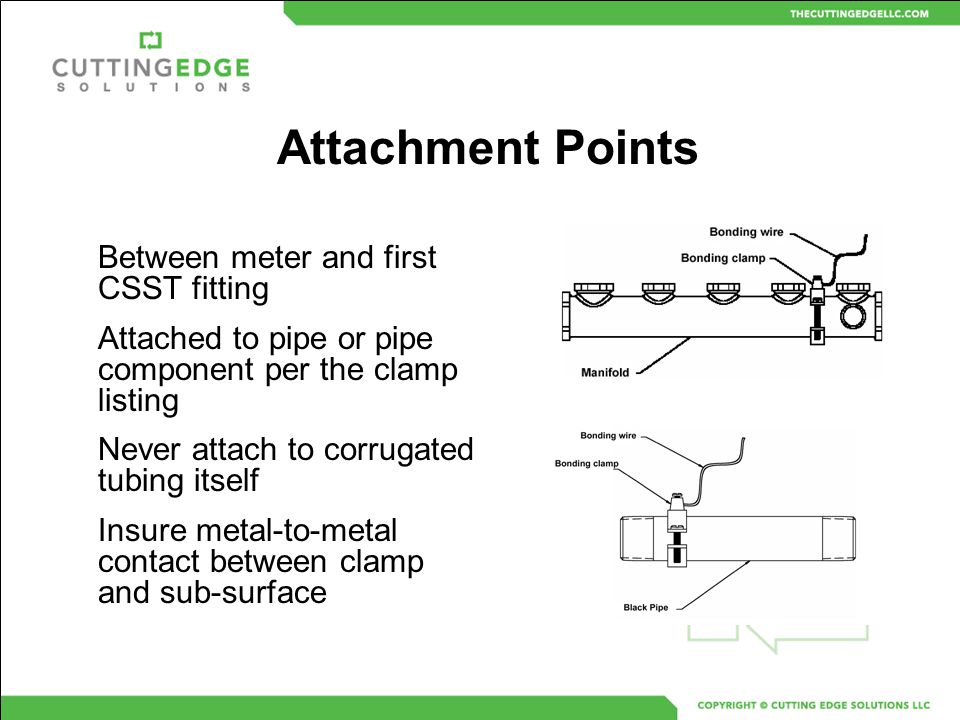

BONDING WIRE BONDING CLAMP CSST FITTING. BONDING WIRE BONDING CLAMP BLACK PIPE COMPONENT OR CSST STUB-OUT Bonding Clamp Placement on CSST Fitting Bonding Clamp Placement on Rigid Pipe Component For additional information about electrical bonding of CSST see ICC 2015 Code Notes listed in the Literature Download section of this website.

Bonding CSST - Structure Tech Home Inspections

I read through the 2017 NEC, specifically focusing on 250.104; however, I could not figure out a clear answer. I know that in some states, you are allowed to bond to the water system but I am specifically looking for Arkansas. Arkansas adopted the 2017 NEC with amendments on 1 Jan 18. Thank you. pipe gas grounding-and-bonding copper csst.

Gas Supply Line Safety, CSST Bonding Requirements | Zuehlke ...

CSST is a flexible gas line material that has been used in millions of homes across the United States and the world. CSST is short for Corrugated Stainless Steel Tubing . It was invented in the 1980's in Japan. The reason for the development of CSST was to improve the safety of gas line systems in buildings during earthquakes.

Overview Seminar Goal Objectives

Csst Bonding Diagram Csst Bonding Diagram Properly bonding and grounding of a Corrugated Stainless Steel Tubing (CSST) system may reduce the risk of damage and fire from a lightning strike. While inspecting gas lines, a home inspector should confirm that the CSST gas system has been properly bonded to the grounding.

What is the difference between grounding and bonding? | Blue ...

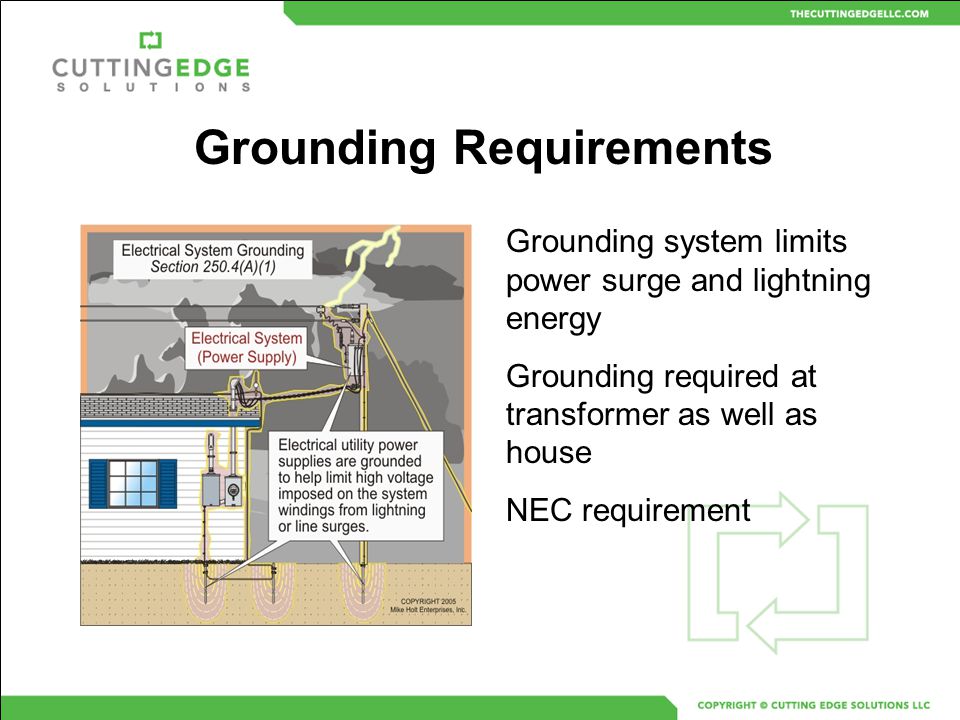

The bonding of corrugated stainless steel tubing (CSST) piping system to the grounding electrode system of the structure in which the CSST is installed will lower the voltage build-up on the CSST caused by unintentional energizing from outside sources such as power surges and lightning strikes. The
